Compare Security Gateways

Check Point offers a range of firewalls to meet every use case and performance requirement. View side-by-side comparisons for up to three products at at time.

Check-off the ‘Add to Compare’ box at the bottom of a product summary column. Up to three selections will appear below the red bar below
Click the red COMPARE button to view full specification
Return to beginning by clicking < GO BACK TO SELECTOR at top of page

Quantum Spark 2000

Quantum Spark 2000 is a fast, high port density firewalls with integrated AI ML security to prevent...

See datasheet

Next Generation Firewall
Site-to-Site, Remote Access VPN
Application Control and Web Filtering
Integrated SD-WAN network optimization

Threat Prevention [Gbps]	5
NGFW [Gbps]	10
IPS [Gbps]	11
Firewall [Gbps]	20
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	100,000
Concurrent connections (Base/Plus/Max)	4,200,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

• Unified access policy: firewall, application control
• Policy layers and sub-policies
• Acceleration of domain, dynamic and time objects
• Multicore VPN and VPN acceleration
• Smart Accel 30% performance improvement*

N/A*

• Single Power Supply rating AC: 2 x 150W
• Power input: 100 to 240VAC (50-60Hz)
• Power consumption avg/max: 93.6W
• Maximum thermal output AC 319.3BTU/h

• Enclosure: 1RU
• Dimensions: (WxDxH): 16.93 x 11.8 x 1.74 in. (430 x 300 x 44.2 mm)
• Weight: (gross; Kg): 6.76

UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, FCC: Part 15 Class B / RoHS, REACH, WEEE

Quantum Spark 2000

Quantum Spark 2000 is a fast, high port density firewalls with integrated AI ML security to...

Add to compare

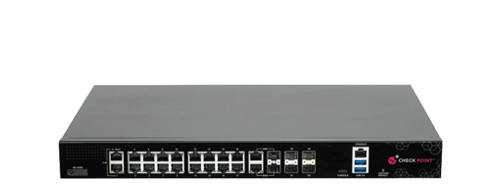

Quantum Spark 1900

Quantum Spark 1900 is a fast, high port density firewalls with integrated AI ML security to prevent...

See datasheet

Next Generation Firewall
Site-to-Site, Remote Access VPN
Application Control and Web Filtering
Integrated SD-WAN network optimization

Threat Prevention [Gbps]	4
NGFW [Gbps]	8
IPS [Gbps]	9
Firewall [Gbps]	20
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	90,000
Concurrent connections (Base/Plus/Max)	4,200,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

N/A*

• Single Power Supply rating AC: 2 x 150W
• Power input: 100 to 240VAC (50-60Hz)
• Power consumption avg/max: 93.6W
• Maximum thermal output AC 319.3BTU/h

• Enclosure: 1RU
• Dimensions: (WxDxH): 16.93 x 11.8 x 1.74 in. (430 x 300 x 44.2 mm)
• Weight: (gross; Kg): 6.76

UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, FCC: Part 15 Class B / RoHS, REACH, WEEE

Quantum Spark 1900

Quantum Spark 1900 is a fast, high port density firewalls with integrated AI ML security to...

Add to compare

Quantum Spark 1800

Quantum Spark 1800 security gateways deliver enterprise-grade security solutions in a 1 Rack Unit (RU) form factor.

See datasheet

Next Generation Firewall
Site-to-Site, Remote Access VPN
Application Control and Web Filtering
Intrusion Prevention

Threat Prevention [Gbps]	2,000 Mbps
NGFW [Gbps]	5,000 Mbps
IPS [Gbps]	5,500 Mbps
Firewall [Gbps]	7,500 Mbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	66,000
Concurrent connections (Base/Plus/Max)	2,400,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

• Network security snapshot: view connected devices and threats
• Real-time security alerts: attacks and unauthorized devices
• On-the-spot threat mitigation: quickly block infected devices
• Network statistic reports and charts
• Manage multiple gateways

N/A*

• Single Power Supply rating AC: 150W
• Power input: 100 to 240VAC (50-60Hz)
• Power consumption avg/max: 93.6W
• Maximum thermal output AC 319.3BTU/h

• Enclosure: 1RU
• Dimensions: (WxDxH): 16.93 x 11.8 x 1.74 in. (430 x 300 x 44.2 mm)
• Weight: (gross; Kg): 6.76

UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, FCC: Part 15 Class B / RoHS, REACH, WEEE

Quantum Spark 1800

Quantum Spark 1800 security gateways deliver enterprise-grade security solutions in a 1 Rack Unit (RU) form...

Add to compare

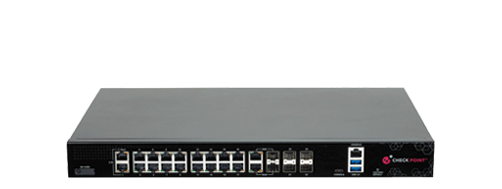

Quantum Spark 1600

Quantum Spark 1600 security gateways deliver enterprise-grade security solutions in a 1 Rack Unit (RU) form factor.

See datasheet

Next Generation Firewall
Site-to-Site, Remote Access VPN
Application Control and Web Filtering
Intrusion Prevention

Threat Prevention [Gbps]	1,500 Mbps
NGFW [Gbps]	3,200 Mbps
IPS [Gbps]	3,500 Mbps
Firewall [Gbps]	4,800 Mbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	55,000
Concurrent connections (Base/Plus/Max)	2,400,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

N/A*

• Single Power Supply rating AC: 150W
• Power input: 100 to 240VAC (50-60Hz)
• Power consumption avg/max: 71.6W
• Maximum thermal output AC 244.31BTU/h

• Enclosure: 1RU
• Dimensions: (WxDxH): 16.93 x 11.8 x 1.74 in. (430 x 300 x 44.2 mm)
• Weight: (gross; Kg): 6.17

UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, FCC: Part 15 Class B / RoHS, REACH, WEEE

Quantum Spark 1600

Quantum Spark 1600 security gateways deliver enterprise-grade security solutions in a 1 Rack Unit (RU) form...

Add to compare

Quantum Spark 1595 Pro

Security gateway family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions.

See datasheet

Next Generation Firewall
Site-to-Site, Remote Access VPN
Application Control and Web Filtering
Intrusion Prevention

Threat Prevention [Gbps]	900 Mbps
NGFW [Gbps]	660 Mbps
IPS [Gbps]	1,400 Mbps
Firewall [Gbps]	2,800 Mbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	21,000
Concurrent connections (Base/Plus/Max)	1,000,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

N/A*

• Single Power Supply rating AC: 40W (Wired) / 60W (Wi-Fi)
• Power input: 100 to 240VAC (50-60Hz)
• Power consumption avg/max: 26.01W (Wired) / 35.5W (Wi-Fi)
• Maximum thermal output AC 88.75 (Wired) / 127.14BTU/h (Wi-Fi)

• Enclosure: Desktop
• Dimensions: (WxDxH): 8.3 x 6.7 x 1.7 in. (210 x 170 x 42 mm)
• Weight: (gross; Kg): 0.87

CB 62368-1, CE, CE 62368-1, UL 62638-1, CB 60950-1, FCC IC Class B, CE LVD, VCCI, AS/NZS RCM EMC, RoHS, REACH, WEEE

Quantum Spark 1595 Pro

Security gateway family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions.

Add to compare

Quantum Spark 1575 Pro

Security gateway family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions.

See datasheet

Next Generation Firewall
Site-to-Site, Remote Access VPN
Application Control and Web Filtering
Intrusion Prevention

Threat Prevention [Gbps]	650 Mbps
NGFW [Gbps]	500 Mbps
IPS [Gbps]	970 Mbps
Firewall [Gbps]	2,800 Mbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	15,750
Concurrent connections (Base/Plus/Max)	1,000,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

N/A*

• Enclosure: Desktop
• Dimensions: (WxDxH): 8.3 x 6.7 x 1.7 in. (210 x 170 x 42 mm)
• Weight: (gross; Kg): 0.87

CB 62368-1, CE, CE 62368-1, UL 62638-1, CB 60950-1, FCC IC Class B, CE LVD, VCCI, AS/NZS RCM EMC, RoHS, REACH, WEEE

Quantum Spark 1575 Pro

Security gateway family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions.

Add to compare

Quantum Spark 1555 Pro

Security gateway family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions.

See datasheet

Next Generation Firewall
Site-to-Site, Remote Access VPN
Application Control and Web Filtering
Intrusion Prevention

Threat Prevention [Gbps]	600 Mbps
NGFW [Gbps]	450 Mbps
IPS [Gbps]	900 Mbps
Firewall [Gbps]	1,000 Mbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	14,000
Concurrent connections (Base/Plus/Max)	1,000,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

N/A*

• Enclosure: Desktop
• Dimensions: (WxDxH): 8.3 x 6.7 x 1.7 in. (210 x 170 x 42 mm)
• Weight: (gross; Kg): 0.87

CB 62368-1, CE, CE 62368-1, UL 62638-1, CB 60950-1, FCC IC Class B, CE LVD, VCCI, AS/NZS RCM EMC, RoHS, REACH, WEEE

Quantum Spark 1555 Pro

Security gateway family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions.

Add to compare

Quantum Spark 1535 Pro

Security gateway family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions.

See datasheet

Next Generation Firewall
Site-to-Site, Remote Access VPN
Application Control and Web Filtering
Intrusion Prevention

Threat Prevention [Gbps]	440 Mbps
NGFW [Gbps]	340 Mbps
IPS [Gbps]	670 Mbps
Firewall [Gbps]	1,000 Mbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	10,500
Concurrent connections (Base/Plus/Max)	1,000,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

N/A*

• Enclosure: Desktop
• Dimensions: (WxDxH): 8.3 x 6.7 x 1.7 in. (210 x 170 x 42 mm)
• Weight: (gross; Kg): 0.87

CB 62368-1, CE, CE 62368-1, UL 62638-1, CB 60950-1, FCC IC Class B, CE LVD, VCCI, AS/NZS RCM EMC, RoHS, REACH, WEEE

Quantum Spark 1535 Pro

Security gateway family delivers enterprise-grade security in a series of simple and affordable, all-in-one security solutions.

Add to compare

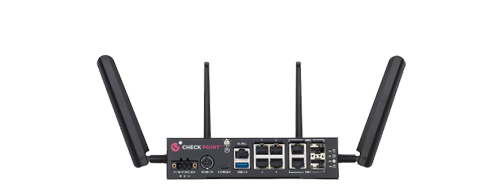

Quantum Rugged 1595R

Rugged appliances ensure industrial sites, manufacturing floors and mobile fleets are connected and secure.

See datasheet

400 Mbps Threat Prevention
1,900 Mbps Firewall
6 x GbE, and 5G Wireless Option
1 RU

Threat Prevention [Gbps]	400 Mbps
NGFW [Gbps]	700 Mbps
IPS [Gbps]	770 Mbps
Firewall [Gbps]	1,900 Mbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	13.500
Concurrent connections (Base/Plus/Max)	1,000,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

N/A*

• Single Power Supply rating AC: 120W
• Power input: 100 to 240VAC (50-60Hz)
• Power consumption avg/max: 29.5W
• Maximum thermal output AC 100.6BTU/h

• Enclosure: Desktop, wall mount, DIN rail
• Dimensions: (WxDxH): 150 x 170 x 42 mm, 5.9 x 6.7 x 1.7 in
• Weight: (gross; Kg): 1.36

CB IEC, UL, CE LVD - IEC 62368-1, UL/c 62368-1, CE LVD, EN62368-1, ASNZ 62368-1, CE, UKCA, FCC, IC , VCCI, AS_NZS ACMA, RoHS, REACH, WEEE, POP, TSCA

Quantum Rugged 1595R

Rugged appliances ensure industrial sites, manufacturing floors and mobile fleets are connected and secure.

Add to compare

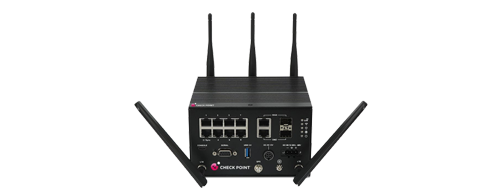

Quantum Rugged 1575R

Rugged appliances ensure industrial sites, manufacturing floors and mobile fleets are connected and secure.

See datasheet

400 Mbps Threat Prevention
1,900 Mbps Firewall
10 x GbE, WiFi & LTE options
2 RU

Threat Prevention [Gbps]	400 Mbps
NGFW [Gbps]	700 Mbps
IPS [Gbps]	770 Mbps
Firewall [Gbps]	1,900 Mbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	13,500
Concurrent connections (Base/Plus/Max)	500,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

N/A*

• Single Power Supply rating AC: 2 x 150W
• Power input: 100 to 240VAC (50-60Hz)
• Power consumption avg/max: 93.6W
• Maximum thermal output AC 319.3BTU/h

• Enclosure: 1RU
• Dimensions: (WxDxH): 16.93 x 11.8 x 1.74 in. (430 x 300 x 44.2 mm)
• Weight: (gross; Kg): 6.76

UL/c-UL 62368-1 , IEC 62368-1 CB / EMC, EMI EN55024, EN55032 Class B, VCCI, AS, NZS CISPR 32, IC ICES 03, FCC: Part 15 Class B / RoHS, REACH, WEEE

Quantum Rugged 1575R

Rugged appliances ensure industrial sites, manufacturing floors and mobile fleets are connected and secure.

Add to compare

Quantum Force 9800

Quantum 9800 firewalls deliver up to 185 Gbps of firewall and 20 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Advanced DNS Security
Zero-phishing (no agent required)

Threat Prevention [Gbps]	20
NGFW [Gbps]	67.7
IPS [Gbps]	90.5
Firewall [Gbps]	185
Firewall Latency (avg)	1.85µSec
VPN AES-GCM 1452B [Gbps]	75
Connections/sec	715,000
Concurrent connections (Base/Plus/Max)	7M/15M/34M
TLS Threat Prevention [Gbps]	10.1
TLS Threat Prevention web mix [Gbps]	6
TLS IPS web mix [Gbps]	7.9

• 1 CPU, 20 physical cores, 40 virtual (total)
• Storage: BASE x 1 SSD 960GB NVMe, PLUS x 2 SSD 960GB NVMe
• Power: BASE x 1 External AC PSU, PLUS x 2 External AC PSUs
• 32 (64 in PLUS model) to 128 GB memory options

• 8 x 1/10GBASE-F SFP+ port card
• 4 x 10/25GBASE-F SFP28 port card
• 2 x 40/100GBASE-F QSFP28 port card

• Single Power Supply rating AC: 450W
• Power input: 100 to 240VAC (47-63Hz), -40~-70VDC
• Power consumption avg/max: 233.5W/389.3W
• Maximum thermal output AC 1328.3BTU/h

• Enclosure: 1RU
• Dimensions: (WxDxH): 17.2 x 20 x 1.73 in.(438 x 508 x 44mm)
• Weight: (gross; Kg): 16.9

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 9800

Quantum 9800 firewalls deliver up to 185 Gbps of firewall and 20 Gbps of threat prevention...

Add to compare

Quantum Force 9700

Quantum 9700 firewalls deliver up to 129 Gbps of firewall and 16.6 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Advanced DNS Security
Zero-phishing (no agent required)

Threat Prevention [Gbps]	16.6
NGFW [Gbps]	57.6
IPS [Gbps]	76.7
Firewall [Gbps]	129
Firewall Latency (avg)	1.85μSec
VPN AES-GCM 1452B [Gbps]	75
Connections/sec	535,000
Concurrent connections (Base/Plus/Max)	6.5M/15M/29M
TLS Threat Prevention [Gbps]	9.6
TLS Threat Prevention web mix [Gbps]	5.8
TLS IPS web mix [Gbps]	7.3

• CPU: 16 physical cores, total of 32 logical cores
• Storage: BASE x 1 SSD 960GB NVMe, PLUS x 2 SSD 960GB NVMe
• Power: BASE x 1 External AC PSU, PLUS x 2 External AC PSUs
• 32 (64 in PLUS model) to 128 GB memory options
• Lights-Out-Management card – optional (included in Plus package)

• 8 x 1/10GBASE-F SFP+ port card
• 4 x 10/25GBASE-F SFP28 port card
• 2 x 40/100GBASE-F QSFP28 port card

• Single Power Supply rating AC: 450W
• Power input: 100 to 240VAC (47-63Hz)
• Power consumption avg/max: 224.5W/374.3W
• Maximum thermal output AC 1277.1BTU/h

• Enclosure: 1RU
• Dimensions: (WxDxH): 17.2 x 20 x 1.73 in.(438 x 508 x 44mm)
• Weight: (gross; Kg): 16.9

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 9700

Quantum 9700 firewalls deliver up to 129 Gbps of firewall and 16.6 Gbps of threat prevention...

Add to compare

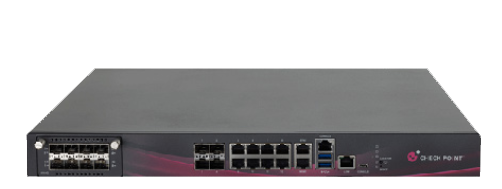

Quantum Force 9400

Quantum 9400 firewalls deliver up to 72.6 Gbps of firewall and 11 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Sandboxing with file sanitization
Zero-phishing (no agent required)

Threat Prevention [Gbps]	11
NGFW [Gbps]	33.3
IPS [Gbps]	46.4
Firewall [Gbps]	72.6
Firewall Latency (avg)	1.85μSec
VPN AES-GCM 1452B [Gbps]	40
Connections/sec	355,000
Concurrent connections (Base/Plus/Max)	2.75M/7.27M/16.2
TLS Threat Prevention [Gbps]	5.5
TLS Threat Prevention web mix [Gbps]	3.2
TLS IPS web mix [Gbps]	4

• 1 CPU, 14 physical cores, 20 virtual (total)
• Storage: 1 SSD 960GB SATA
• Power: BASE x 1 External AC PSU, PLUS x 2 External AC PSUs
• 16 to 64 GB memory options
• Lights-Out-Management card – optional (included in Plus package

• 8 x 1/10GBASE-F SFP+ port card
• 4 x 10/25GBASE-F SFP28 port card
• 2 x 40/100GBASE-F QSFP28 port card

• Single Power Supply rating AC: 320W
• Power input: 100 to 240VAC (47-63Hz)
• Power consumption avg/max: 105.1W/175.3W
• Maximum thermal output AC: 597.7BTU/s

• Enclosure: 1RU
• Dimensions: (WxDxH): 17.2 x 20 x 1.73 in.(438 x 508 x 44mm)
• Weight: (gross; Kg): 15.97

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 9400

Quantum 9400 firewalls deliver up to 72.6 Gbps of firewall and 11 Gbps of threat prevention...

Add to compare

Quantum Force 9300

Quantum 9300 firewalls deliver up to 70 Gbps of firewall and 9 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Sandboxing with file sanitization
Zero-phishing (no agent required)

Threat Prevention [Gbps]	9
NGFW [Gbps]	28.2
IPS [Gbps]	39
Firewall [Gbps]	70
Firewall Latency (avg)	80.2
VPN AES-GCM 1452B [Gbps]	9μSec
Connections/sec	300,000
Concurrent connections (Base/Plus/Max)	2.75M/7.27M/16.2
TLS Threat Prevention [Gbps]	5.1
TLS Threat Prevention web mix [Gbps]	2.9
TLS IPS web mix [Gbps]	3.9

• CPU: 10 physical cores, total of 16 logical cores
• Storage: 1 SSD 480GB SATA
• Power: BASE x 1 External AC PSU, PLUS x 2 External AC PSUs
• 16 to 64 GB memory options
• Lights-Out-Management card – optional (included in Plus package)

• 8 x 1/10GBASE-F SFP+ port card
• 4 x 10/25GBASE-F SFP28 port card

• Single Power Supply rating AC: 320W
• Power input: 100 to 240VAC (47-63Hz)
• Power consumption avg/max: 96W/160W
• Maximum thermal output AC: 545.6BTU/s

• Enclosure: 1RU
• Dimensions: (WxDxH): 17.2 x 20 x 1.73 in.(438 x 508 x 44mm)
• Weight: (gross; Kg): 15.97

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 9300

Quantum 9300 firewalls deliver up to 70 Gbps of firewall and 9 Gbps of threat prevention...

Add to compare

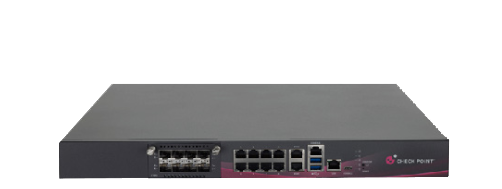

Quantum Force 9200

Quantum 9200 firewalls deliver up to 60 Gbps of firewall and 6.6 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Intrusion Prevention
Zero-phishing (no agent required)

Threat Prevention [Gbps]	6.6
NGFW [Gbps]	19
IPS [Gbps]	31
Firewall [Gbps]	60
Firewall Latency (avg)	9μSec
VPN AES-GCM 1452B [Gbps]	28.6
Connections/sec	250,000
Concurrent connections (Base/Plus/Max)	2.75M/7.27M/16.2
TLS Threat Prevention [Gbps]	3.6
TLS Threat Prevention web mix [Gbps]	2
TLS IPS web mix [Gbps]	2.9

• CPU: 4 physical cores, total of 8 logical cores
• Storage: 1 SSD 480GB SATA
• 2x Internal AC power supply
• 16 to 64 GB memory options
• Lights-Out-Management card – optional (included in Plus package)

• 8 x 1/10GBASE-F SFP+ port card
• 4 x 10/25GBASE-F SFP28 port card

• Single Power Supply rating AC: 200W
• Power input: 100 to 240VAC (47-63Hz)
• Power consumption avg/max: 84.4W/140.8W
• Maximum thermal output AC: 480.1BTU/s

• Enclosure: 1RU
• Dimensions: (WxDxH): 17.2 x 20 x 1.73 in.(438 x 508 x 44mm)
• Weight: (gross; Kg): 14.8

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 9200

Quantum 9200 firewalls deliver up to 60 Gbps of firewall and 6.6 Gbps of threat prevention...

Add to compare

Quantum Force 9100

Quantum 9100 firewalls deliver up to 55 Gbps of firewall and 4.95 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewal
Application and Web Filtering
Intrusion Prevention
Zero-phishing (no agent required)

Threat Prevention [Gbps]	4.95
NGFW [Gbps]	18.6
IPS [Gbps]	25.7
Firewall [Gbps]	55
Firewall Latency (avg)	10µSec
VPN AES-GCM 1452B [Gbps]	22.1
Connections/sec	190,000
Concurrent connections (Base/Plus/Max)	2.75/7.27M/16.2M
TLS Threat Prevention [Gbps]	2.96
TLS Threat Prevention web mix [Gbps]	1.6
TLS IPS web mix [Gbps]	2.3

• 1 CPU, 4 physical cores, 8 virtual
• Storage: 1 SSD 480GB SATA
• 2x Internal AC power supply
• 16 to 64 GB memory options
• Lights-Out-Management card – optional (included in Plus package)

• 8 x 1/10GBASE-F SFP+ port card
• 4 x 10/25GBASE-F SFP28 port card

• Single Power Supply rating AC: 200W
• Power input: 100 to 240VAC (47-63Hz)
• Power consumption avg/max: 84.4W /140.8W
• Maximum thermal output AC: 480.1BTU/s

• Enclosure: 1RU
• Dimensions: (WxDxH): 17.2 x 20 x 1.73 in.(438 x 508 x 44mm)
• Weight: (gross; Kg): 14.8

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 9100

Quantum 9100 firewalls deliver up to 55 Gbps of firewall and 4.95 Gbps of threat prevention...

Add to compare

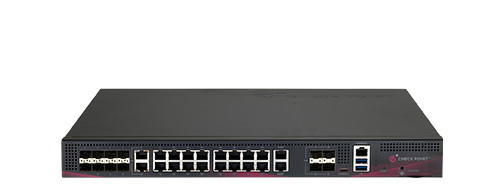

Quantum Force 3980

Enterprise-grade security with lightning-fast apps and internet for medium to large branch offices.

See datasheet

Integrated SD-WAN network optimization
File disarm and reconstruction via Threat Extraction
CPU-level, OS-level and static file analysis
End user and data owner incident handling

Threat Prevention [Gbps]	7 Gbps
NGFW [Gbps]	20 Gbps
IPS [Gbps]	28.5 Gbps
Firewall [Gbps]	40 Gbps
Firewall Latency (avg)	12 μSec
VPN AES-GCM 1452B [Gbps]	23 Gbps
Connections/sec	195,000
Concurrent connections (Base/Plus/Max)	7,200,000
TLS Threat Prevention [Gbps]	2.1 Gbps
TLS Threat Prevention web mix [Gbps]	1.25 Gbps
TLS IPS web mix [Gbps]	1.65 Gbps

• 1 CPU,8Physical Cores
• 32 GB RAM
• 480 GB NVME SSD M.2
• 2x AC internal PSUs
• 1U Rack Mount

• Dual Internal PSUs
• Single PSU ratings: 135W
• Power input: 100 to 240VAC (50-60Hz)
• Power consumption avg/max: 64W/76W
• Maximum thermal output avg/max: 160.73 BTU/hr. / 191.07 BTU/hr.

• Enclosure: 1U Rack Mount
• Dimensions (WxDxH): 16.93 x 11.81 x 1.74 in. (430.0 x 300.0 x 44.2mm)
• Weight: 9.328 lbs / 4.231 kg

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 3980

Enterprise-grade security with lightning-fast apps and internet for medium to large branch offices.

Add to compare

Quantum Force 3970

Enterprise-grade security with lightning-fast apps and internet for medium to large branch offices.

See datasheet

Integrated SD-WAN network optimization
File disarm and reconstruction via Threat Extraction
CPU-level, OS-level and static file analysis
End user and data owner incident handling

Threat Prevention [Gbps]	4.25 Gbps
NGFW [Gbps]	12.5 Gbps
IPS [Gbps]	17 Gbps
Firewall [Gbps]	40 Gbps
Firewall Latency (avg)	19 μSec
VPN AES-GCM 1452B [Gbps]	13 Gbps
Connections/sec	140,000
Concurrent connections (Base/Plus/Max)	7,200,000
TLS Threat Prevention [Gbps]	1.4 Gbps
TLS Threat Prevention web mix [Gbps]	0.85 Gbps
TLS IPS web mix [Gbps]	1.15 Gbps

• 1x CPUs, 8 physical cores 
• 1x 480 GB SSD NVME M.2 storage 
• 32 GB memory 
• 2x internal PSUs
• 1U rack mount

• Dual internal PSUs
• AC power input: 100 to 240V (50-60Hz) 135W
• Power consumption avg/max: 64W/76W
• Maximum thermal output: 191 BTU/hr.

• Enclosure: 1U rack mount
• Dimensions (WxDxH): 16.93 x 11.81 x 1.74 in. (430 x 300 x 44.2 mm)
• Weight: 9.33 lbs. (4.2 kg)

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 3970

Enterprise-grade security with lightning-fast apps and internet for medium to large branch offices.

Add to compare

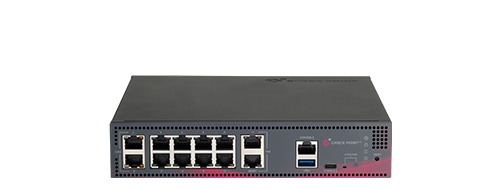

Quantum Force 3950

Enterprise-grade security with lightning-fast apps and internet for medium sized branch offices.

See datasheet

Integrated SD-WAN network optimization
File disarm and reconstruction via Threat Extraction
CPU-level, OS-level and static file analysis
End user and data owner incident handling

Threat Prevention [Gbps]	5.5 Gbps
NGFW [Gbps]	16.2 Gbps
IPS [Gbps]	20 Gbps
Firewall [Gbps]	20 Gbps
Firewall Latency (avg)	13 μSec
VPN AES-GCM 1452B [Gbps]	17.5 Gbps
Connections/sec	130,000
Concurrent connections (Base/Plus/Max)	7,200,000
TLS Threat Prevention [Gbps]	1.75 Gbps
TLS Threat Prevention web mix [Gbps]	1.1 Gbps
TLS IPS web mix [Gbps]	1.4 Gbps

• 1x CPUs, 8 physical cores
• 1x 480 GB SSD NVME M.2 storage
• 32 GB memory
• 2x external AC-DC power adapters
• Desktop (rack mount installation - optional

• Dual Power Supply: 60W
• AC power input: 100 to 240V (50-60Hz)
• Power consumption avg/max: 46W/54W
• Maximum thermal output: 191 BTU/hr.

• Enclosure: Desktop
• Dimensions (WxDxH): 8.27 x 8.26 x 1.67 in. (210 x 209.9 x 42.5mm)
• Weight: 2.17 lbs. (0.988 kg)

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 3950

Enterprise-grade security with lightning-fast apps and internet for medium sized branch offices.

Add to compare

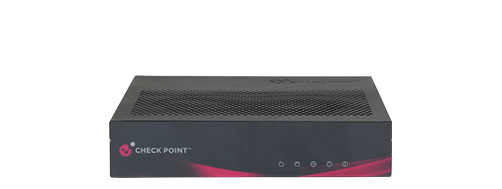

Quantum Force 3920

Enterprise-grade security with lightning-fast apps and internet for small branch offices.

See datasheet

Integrated SD-WAN network optimization
File disarm and reconstruction via Threat Extraction
CPU-level, OS-level and static file analysis
End user and data owner incident handling

Threat Prevention [Gbps]	3.2 Gbps
NGFW [Gbps]	7.8 Gbps
IPS [Gbps]	11.5 Gbps
Firewall [Gbps]	20 Gbps
Firewall Latency (avg)	27 μSec
VPN AES-GCM 1452B [Gbps]	9.5 Gbps
Connections/sec	95,000
Concurrent connections (Base/Plus/Max)	2,750,000
TLS Threat Prevention [Gbps]	0.95 Gbps
TLS Threat Prevention web mix [Gbps]	0.6 Gbps
TLS IPS web mix [Gbps]	0.8 Gbps

• 1 CPU, 6 physical cores
• 1x 480 GB SSD NVME M.2 storage
• 16 GB memory
• 2x external AC-DC power adapters
• Desktop (rack mount installation - optional

• Dual Power Supply: 60W
• Power input: 100 to 240V (50-60Hz)
• Power consumption avg/max: 27W/34W
• Maximum thermal output: 115.466 BTU/hr.

• Enclosure: Desktop
• Dimensions (WxDxH): 8.26 x 7.08 x 1.67 in. (210 x 180 x 42.5mm)
• Weight: 2.28 lbs. (1.04 kg)

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 3920

Enterprise-grade security with lightning-fast apps and internet for small branch offices.

Add to compare

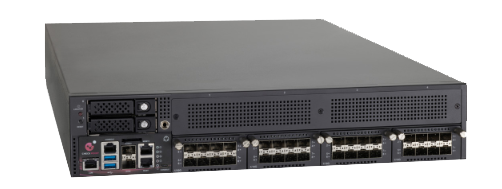

Quantum Force 29200

Quantum 29200 firewalls deliver up to 1.4 Tbps of firewall and 63.5 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Antivirus and Anti-Bot
Zero-phishing (no agent required)

Threat Prevention [Gbps]	63.5
NGFW [Gbps]	165
IPS [Gbps]	235
Firewall [Gbps]	500
Firewall Latency (avg)	1.85μSec
VPN AES-GCM 1452B [Gbps]	130
Connections/sec	1,500,000
Concurrent connections (Base/Plus/Max)	30M/48M/67M
TLS Threat Prevention [Gbps]	24.6
TLS Threat Prevention web mix [Gbps]	18.6
TLS IPS web mix [Gbps]	25.04

• CPU: 64 physical cores, total of 128 logical cores
• Storage: BASE x 1 SSD 960GB NVMe, PLUS x 2 SSD 960GB NVMe
• 2x AC power supplies
• 128, 192 and 256 GB memory options
• Lights-Out-Management card (included in Plus package)

• 8 x 1/10GBASE-F SFP+ port card, up to 56 ports
• 4 x 10/25GBASE-F SFP28 port card, up to 30 ports
• 2 x 40/100GBASE-F QSFP28 port card, up to 14 ports

• Single Power Supply rating AC: 1300W
• Power input: 100 to 240VAC (47-63Hz)
• Power consumption 110VAC avg/max: 600W/999W
• Maximum thermal output AC: 3408.7 BTU/hr.

• Enclosure: 2RU
• Dimensions (WxDxH): 17.25 x 24 x 3.5 in. (442 x 610 x 88mm)
• Weight: 42.1 lbs. (19.1 kg)

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 29200

Quantum 29200 firewalls deliver up to 1.4 Tbps of firewall and 63.5 Gbps of threat prevention...

Add to compare

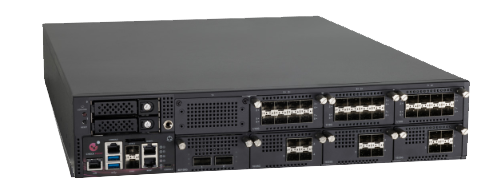

Quantum Force 29100

Quantum 29100 firewalls deliver up to 1.4 Tbps of firewall and 47.4 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Antivirus and Anti-Bot
Zero-phishing (no agent required)

Threat Prevention [Gbps]	47.4
NGFW [Gbps]	130
IPS [Gbps]	175
Firewall [Gbps]	365
Firewall Latency (avg)	1,400
VPN AES-GCM 1452B [Gbps]	1.85μSec
Connections/sec	1,250,000
Concurrent connections (Base/Plus/Max)	30M/48M/67M
TLS Threat Prevention [Gbps]	24.36
TLS Threat Prevention web mix [Gbps]	14.6
TLS IPS web mix [Gbps]	19.3

• CPU: 56 physical cores, total of 112 logical cores
• Storage: BASE x 1 SSD 960GB NVMe, PLUS x 2 SSD 960GB NVMe
• 2x AC power supplies
• 128, 192 and 256 GB memory options
• Lights-Out-Management card (included in Plus package)

• 8 x 1/10GBASE-F SFP+ port card, up to 56 ports
• 4 x 10/25GBASE-F SFP28 port card, up to 30 ports
• 2 x 40/100GBASE-F QSFP28 port card, up to 14 ports

• Single Power Supply rating AC: 1300W
• Power input: 100 to 240VAC (47-63Hz)
• Power consumption 110VAC avg/max: 516W/860W
• Maximum thermal output AC: 2934.4 BTU/hr.

• Enclosure: 2RU
• Dimensions (WxDxH): 17.25 x 24 x 3.5 in. (442 x 610 x 88mm)
• Weight: 41.1 lbs. (18.8 kg)

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 29100

Quantum 29100 firewalls deliver up to 1.4 Tbps of firewall and 47.4 Gbps of threat prevention...

Add to compare

Quantum Force 19200

Quantum 19200 firewalls deliver up to 800 Gbps of firewall and 36.9 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Antivirus and Anti-Bot
Zero-phishing (no agent required)

Threat Prevention [Gbps]	36.9
NGFW [Gbps]	100
IPS [Gbps]	145
Firewall [Gbps]	245
Firewall Latency (avg)	1.85μSec
VPN AES-GCM 1452B [Gbps]	86
Connections/sec	1,000,000
Concurrent connections (Base/Plus/Max)	21M/31M/31M
TLS Threat Prevention [Gbps]	18.6
TLS Threat Prevention web mix [Gbps]	11.2
TLS IPS web mix [Gbps]	15.7

• CPU: 40 physical cores, total of 80 logical cores
• Storage: BASE x 1 SSD 960GB NVMe, PLUS x 2 SSD 960GB NVMe
• 2x AC power supplies
• 96 and 128 GB memory options
• Lights-Out-Management card (included in Plus package)

• 8 x 1/10GBASE-F SFP+ port card, up to 32 ports
• 4 x 10/25GBASE-F SFP28 port card, up to 18 ports
• 2 x 40/100GBASE-F QSFP28 port card, up to 8 ports

• Single Power Supply rating AC: 850W
• Power input: 100 to 240VAC (47-63Hz)
• Power consumption 110VAC avg/max: 378W/630W
• Maximum thermal output AC: 2149.6 BTU/hr.

• Enclosure: 2RU
• Dimensions (WxDxH): 17.25 x 24 x 3.5 in. (442 x 610 x 88mm)
• Weight: 36.3 lbs. (16.5 kg)

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 19200

Quantum 19200 firewalls deliver up to 800 Gbps of firewall and 36.9 Gbps of threat prevention...

Add to compare

Quantum Force 19100

Quantum 19100 firewalls deliver up to 200 Gbps of firewall and 28.8 Gbps of threat prevention throughput...

See datasheet

Next Generation Firewall
Application and Web Filtering
Antivirus and Anti-Bot
Zero-phishing (no agent required)

Threat Prevention [Gbps]	28.8
NGFW [Gbps]	90
IPS [Gbps]	130
Firewall [Gbps]	200
Firewall Latency (avg)	1.85μSec
VPN AES-GCM 1452B [Gbps]	75.3
Connections/sec	750,000
Concurrent connections (Base/Plus/Max)	12.4M/20M/31M
TLS Threat Prevention [Gbps]	14.1
TLS Threat Prevention web mix [Gbps]	10.2
TLS IPS web mix [Gbps]	12.9

• CPU: 32 physical cores, total of 64 logical cores
• Storage: BASE x 1 SSD 960GB NVMe, PLUS x 2 SSD 960GB NVMe
• 2x AC power supplies
• 96 and 128 GB memory options
• Lights-Out-Management card (included in Plus package)

8 x 1/10GBASE-F SFP+ port card, up to 32 ports
• 4 x 10/25GBASE-F SFP28 port card, up to 18 ports
• 2 x 40/100GBASE-F QSFP28 port card, up to 8 ports

• Single Power Supply rating AC: 850W, DC: 1600W
• Power input: 100 to 240VAC (47-63Hz), -36~-70VDC
• Power consumption 110VAC avg/max: 360W/600W
• Maximum thermal output AC: 2047BTU/h

• Enclosure: 2RU
• Dimensions (WxDxH): 17.25 x 24 x 3.5 in. (442 x 610 x 88mm)
• Weight: 36.3 lbs. (16.5 kg)

• Safety: CB IEC 62368-1, CE LVD EN62368-1, UL62368-1, ASNZS 62368.1
• Emissions: CE, FCC IC, VCCI, ASNZS ACMA
• Environmental: ROHS, REACH, WEEE, ISO14001

Quantum Force 19100

Quantum 19100 firewalls deliver up to 200 Gbps of firewall and 28.8 Gbps of threat prevention...

Add to compare

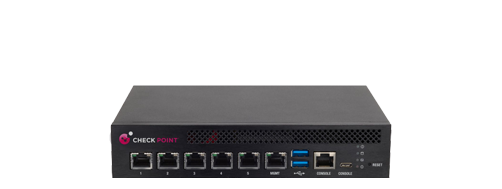

Quantum 3800

Enables enterprises to deploy the industry’s leading threat prevention capabilities at all points of their infrastructure,

See datasheet

Integrated SD-WAN network optimization
File disarm and reconstruction via Threat Extraction
CPU-level, OS-level and static file analysis
End user and data owner incident handling

Threat Prevention [Gbps]	1.5 Gbps
NGFW [Gbps]	3 Gbps
IPS [Gbps]	3.3 Gbps
Firewall [Gbps]	3.6 Gbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	60,000
Concurrent connections (Base/Plus/Max)	4,000,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

• 1x CPUs, 8 physical cores
• 1x 240 GB SSD storage
• 16 GB memory
• Virtual Systems (maximum): 10

N/A*

• Single Power Supply rating: 40W
• AC power input: 100 to 240V (50-60Hz)
• Power consumption avg/max: 30W/36W
• Maximum thermal output: 123 BTU/hr

• Enclosure: Desktop
• Dimensions (WxDxH): 8.3 x 8.3 x 1.65 in. (210 x 210 x 42mm)
• Weight: 3.1 lbs. (1.4 kg)

• Safety: UL, CB, CE, TUV GS
• Emissions: FCC, CE, VCCI, RCM/C-Tick
• Environmental: RoHS, WEEE, REACH 1, ISO14001

Quantum 3800

Enables enterprises to deploy the industry’s leading threat prevention capabilities at all points of their infrastructure,

Add to compare

Quantum 3600

Enables enterprises to deploy the industry’s leading threat prevention capabilities at all points of their infrastructure,

See datasheet

Integrated SD-WAN network optimization
File disarm and reconstruction via Threat Extraction
CPU-level, OS-level and static file analysis
End user and data owner incident handling

Threat Prevention [Gbps]	780 Mbps
NGFW [Gbps]	1.5 Gbps
IPS [Gbps]	1.99 Gbps
Firewall [Gbps]	3.3 Gbps
Firewall Latency (avg)	N/A*
VPN AES-GCM 1452B [Gbps]	N/A*
Connections/sec	32,000
Concurrent connections (Base/Plus/Max)	2,000,000
TLS Threat Prevention [Gbps]	N/A*
TLS Threat Prevention web mix [Gbps]	N/A*
TLS IPS web mix [Gbps]	N/A*

• 1x CPUs, 4 physical cores
• 1x 240 GB SSD storage
• 8 GB memory
• Virtual Systems (maximum): 5

N/A*

• Single Power Supply rating: 40W
• AC power input: 100 to 240V (50-60Hz)
• Power consumption avg/max: 21W/25W
• Maximum thermal output: 85 BTU/hr.

• Enclosure: Desktop
• Dimensions (WxDxH): 8.3 x 8.3 x 1.65 in. (210 x 210 x 42mm)
• Weight: 3.1 lbs. (1.4 kg)

• Safety: UL, CB, CE, TUV GS
• Emissions: FCC, CE, VCCI, RCM/C-Tick
• Environmental: RoHS, WEEE, REACH 1, ISO14001 1*
*Factory certificate

Quantum 3600

Enables enterprises to deploy the industry’s leading threat prevention capabilities at all points of their infrastructure,

Add to compare

Compare

Test Drive Security in Action Now

Discover cutting-edge innovations in network, cloud, and user/access security today.

Get a Demo Subscribe Now

Compare Security Gateways

Compare the Products

Use Cases

Threat Prevention Throughput

Quantum Spark 2000

Quantum Spark 2000

Quantum Spark 1900

Quantum Spark 1900

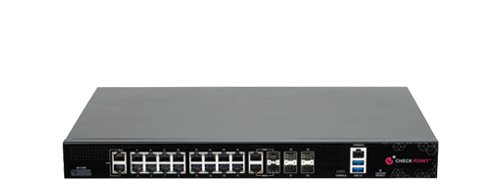

Quantum Spark 1800

Quantum Spark 1800

Quantum Spark 1600

Quantum Spark 1600

Quantum Spark 1595 Pro

Quantum Spark 1595 Pro

Quantum Spark 1575 Pro

Quantum Spark 1575 Pro

Quantum Spark 1555 Pro

Quantum Spark 1555 Pro

Quantum Spark 1535 Pro

Quantum Spark 1535 Pro

Quantum Rugged 1595R

Quantum Rugged 1595R

Quantum Rugged 1575R

Quantum Rugged 1575R

Quantum Force 9800

Quantum Force 9800

Quantum Force 9700

Quantum Force 9700

Quantum Force 9400

Quantum Force 9400

Quantum Force 9300

Quantum Force 9300

Quantum Force 9200

Quantum Force 9200

Quantum Force 9100

Quantum Force 9100

Quantum Force 3980

Quantum Force 3980

Quantum Force 3970

Quantum Force 3970

Quantum Force 3950

Quantum Force 3950

Quantum Force 3920

Quantum Force 3920

Quantum Force 29200

Quantum Force 29200

Quantum Force 29100

Quantum Force 29100

Quantum Force 19200

Quantum Force 19200

Quantum Force 19100

Quantum Force 19100

Quantum 3800

Quantum 3800

Quantum 3600

Quantum 3600

Quantum Force 9100

Test Drive Security in Action Now
